Ceramic
Surface Mount Crystal Oscillator |
| |
CERAMIC SMD TYPE CRYSTAL OSCILLATOR/CO5032 |
| This is 1'st generation ceramic surface
mount type crystal oscillator. |
|
- Compact size(5.0x3.2x1.3mm typ.)
- Four pad mount package, (E/D or NC optionable)
- Various kind of 5.0V, 3.3V, 2.5V and 1.8V input curret
available
- Lead Free. Can meet the requirements of re-flow profiling
using lead free solder.
|
|
Item |
Type
: CO5032 |
Frequency
Range |
1.000
~ 50.000MHz |
Operating Temperature
Range |
-10
~ +60¡É |
Overtone |
Fund
to 30MHz~40MHz/3'rd to 30 to ~ 50MHz |
Frequency
Tolerance(@25¡É) |
¡¾ 25 ~100 x 10 -6 |
Temperature
Characteristics |
¡¾ 25 ~ 100 x 10 -6 |
(refered
to +25¡É) |
Supply
Voltage(VDD) |
5.0VDC/3.3VDC/2.5VDC/1.8VDC |
Input
Current |
See
Table |
Output
Voltage Logic High(VOH) |
2.4V
min./TTL Load |
90%
of VDD min./HCMOS |
Output
Voltage Logic Low(VOL) |
0.4V
max./TTL Load |
10%
of VDD max./HCMOS |
Rise
/ Fall Time |
See
Table |

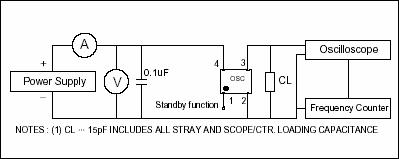

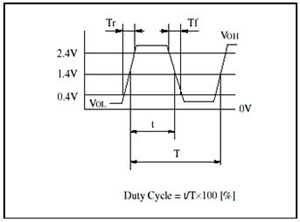

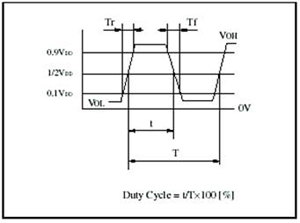

Symmetry(@50%
TTL/1.4VDC
TTL) |
50¡¾10%(STD)
/ 55¡¾5%(Tight Symmetry) |
Load
Drive Capability |
10TTL
/ 15pF HCMOS |
Pin
#1 Tristate Input Voltage |
NC |
Enable
Output |
VIH:¡Ã0.7VDD |
Disable
Output |
VIL:¡Â0.3VDD |
Disable
Output : High Impedance |
Start-up
Time |
10
ms max. |
Period
Jitter |
pk-pk |
100ps
max. |
1
sigma |
25ps
max. |
|
|
PAD
No. |
Connection |
#
1 |
Stand-by(Tristate)
or NC |
#
2 |
GND |
#
3 |
Output |
#
4 |
VDD |
|
| |
Table(Unit
mA for Input Current and ns for Rise/Fall time) |
Frequency |
Input Current |
Rise/Fall |
5V |
3.3V |
2.5V |
1.8V |
(ms)
max |
1.000
to 40.000MHz |
30 |
25 |
15 |
10 |
10 |
30.000
to 50.000MHz |
|
|
|
Quantity |
Taping
Method |
1~499 |
Bulk
in Vinyl bag |
500~1999 |
Taping |
2000~ |
Taping
& Reel |
|
Taping
Dimensions (CX7050 series) |
|
|
To prevent product damage during process of soldering,
please follow either below reflow conditions (a)
or (b).
|
(a) |
Temperature
: 260 ¡É max. |
Duration : 10 sec.(max.) |
(b) |
Temperature
: 230 ¡É max. |
Duration : 80 sec.(max.) |
|
7050 SMD
