Frequency Control Products
















Ceramic Surface Mount Crystal Oscillator
  CERAMIC SMD TYPE CRYSTAL OSCILLATOR/CO3225
This is 1'st generation ceramic surface mount type crystal oscillator.
กแ

Features


  1. Compact size(3.2x2.5x1.3mm typ.)
  2. Four pad mount package, (E/D or NC optionable)
  3. 3.3V, 2.5V input curret  available
  4. Lead Free. Can meet the requirements of re-flow profiling using lead free solder.
กแ

Specification
Item
  Type : CO3225
Frequency Range
1.000 ~ 50.000MHz
Operating Temperature Range
-10 ~ +60กษ
Overtone
Fund to 30MHz~40MHz/3'rd to 30 to ~ 50MHz
Frequency Tolerance(@25กษ)
กพ 25 ~100 x 10 -6
Temperature Characteristics
กพ 25 ~ 100 x 10 -6
(refered to +25กษ)
Supply Voltage(VDD)
3.3VDC/2.5VDC
Input Current
25mA max.
Output Voltage Logic High(VOH)
2.4V min./TTL Load
90% of VDD min./HCMOS
Output Voltage Logic Low(VOL)
0.4V max./TTL Load
10% of VDD max./HCMOS
Rise / Fall Time
10 nm max.
Symmetry(@50% TTL/1.4VDC TTL)
50กพ10%(STD) / 55กพ5%(Tight Symmetry)
Load Drive Capability
10TTL / 15pF HCMOS
Pin #1 Tristate Input Voltage
NC
Enable Output
VIH:กร0.7VDD
Disable Output
VIL:กย0.3VDD
Disable Output : High Impedance
Start-up Time
10 ms max.
Period Jitter
pk-pk
100ps max.
1 sigma
25ps max.
กแ

Dimensions


กแ
 Pin Connection

PAD No.
Connection
# 1
Stand-by(Tristate) or NC
# 2
GND
# 3
Output
# 4
VDD
กแ
 Land Pattern

Output Wave Form
กแ

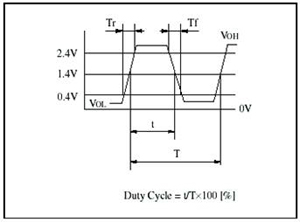

Output Wave (TTL)

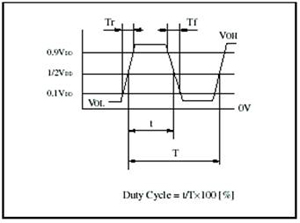

  กแ Output Wave (COMS)


กแ

Test Circuit


กแ
 Packing Method

Quantity
Taping Method
1~499
Bulk in Vinyl bag
500~1999
Taping
2000~
Taping & Reel
Taping Dimensions (CX7050 series)
กแ

Tape

  กแ Reel

Soldering Recommendation
กแ

Handling Cautions


To prevent product damage during process of soldering, please follow either below reflow conditions (a) or (b).
(a)
Temperature : 260 กษ max.
Duration      : 10 sec.(max.)
(b)
Temperature : 230 กษ max.
Duration      : 80 sec.(max.)
