Ceramic Surface Mount Crystal Oscillator
  CERAMIC SMD TYPE CRYSTAL OSCILLATOR/CO7050
This is 1'st generaltion ceramic surface mount type crystal oscillator.
¡á

Features



1. Compact size(7.0x5.0x1.4mm typ.)
2. Four pad mount package, (E/D or NC optionable)
3. Available high stability with frequency from 1.000MHz to 200MHz
4. Lead Free. Can meet the requirements of re-flow profiling using lead free solder.
¡á

Specification

Item
Type : CX7050
Frequency Range
1.000 ~ 200.000MHz
Operating Temperature Range
-10 ~ +60¡É
Overtone
Fund to 35MHz~50MHz/3'rd to 125MHz
Frequency Tolerance(@25¡É)
¡¾ 25 ~100 x 10 -6
Temperature Characteristics
¡¾ 25 ~ 100 x 10 -6
(refered to +25¡É)
Supply Voltage(VDD)
5.0VDC/3.3VDC/2.5VDC/1.8VDC
Input Current
See Table
Output Voltage Logic High(VOH)
2.4V min./TTL Load
90% of VDD min./HCMOS
Output Voltage Logic Low(VOL)
0.4V max./TTL Load
10% of VDD max./HCMOS
Rise / Fall Time
See Table
Symmetry(@50% TTL/1.4VDC TTL)
50¡¾10%(STD) / 55¡¾5%(Tight Symmetry)
Load Drive Capability
10TTL / 15pF HCMOS
Pin #1 Tristate Input Voltage
NC
Enable Output
VIH:¡Ã0.7VDD
Disable Output
VIL:¡Â0.3VDD
Disable Output : High Impedance
Start-up Time
10 ms max.
Period Jitter
pk-pk
100ps max.
1 sigma
25ps max.
¡á

Dimensions


¡á
 Pin Connection

PAD No.
Connection
# 1
Stand-by(Tristate) or NC
# 2
GND
# 3
Output
# 4
VDD
Table (Unit mA for Input Current and ns for Rise/Fall time)
Frequency
Input Current
Rise/Fall
5V
3.3V
2.5V
1.8V
(ms) max
1.000 to 34.999MHz
25
16
10
8
10
35.000 to 60.000MHz
50
25
20
15
8
60.001 to 99.999MHz
60
40
30
25
5
100.000 to 106.250MHz
80
50
40
35
5
106.250 to 200.000MHz
50
40
35
2.5
Output Wave Form
¡á

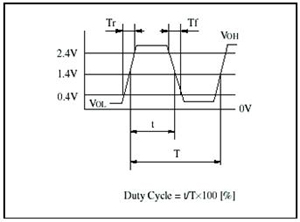

Output Wave (TTL)

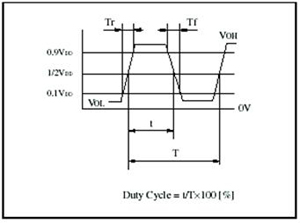

  ¡á Output Wave (COMS)

¡á

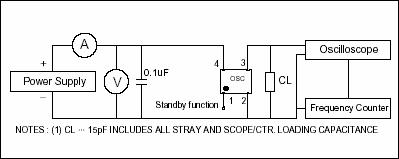

Test Circuit


¡á
 Packing Method

Quantity
Taping Method
1~499
Bulk in Vinyl bag
500~1999
Taping
2000~
Taping & Reel
Taping Dimensions (CX7050 series)
¡á

Tape

  ¡á Reel

Soldering Recommendation
¡á

Handling Cautions


To prevent product damage during process of soldering, please follow either below reflow conditions (a) or (b).
(a)
Temperature : 260 ¡É max.
Duration      : 10 sec.(max.)
(b)
Temperature : 230 ¡É max.
Duration      : 80 sec.(max.)
