Frequency Control Products
















Metal Package DIP Oscillators
  8PIN DIL HALF SIZE CRYSTAL OSCILLATOR
Classical oscillators DIP package with Hybrid I.C ceramic substrate mounted
¡á

Features


  1. Analogue circuit design
  2. Divided frequency until 32.768KHz available
  3. Various kind of outputs supported (PECL, ECL,LVDS SINE as well as CMOS/TTL)
  4. Lead Free. Can meet the requirements of re-flow profiling using lead free solder.
¡á

Specification

Item
Type : CO1400
Frequency Range
32.768KHz ~ 200MHz
Operating Temperature Range
-10 ~ +60¡É
Overtone
Fund to 35MHz~50MHz/3'rd to 200MHz
Frequency Tolerance(@25¡É)
¡¾ 25 ~100 x 10 -6
Temperature Characteristics
¡¾ 25 ~ 100 x 10 -6
(refered to +25¡É)
Supply Voltage(VDD)
5.0VDC/3.3VDC/2.5VDC/1.8VDC
Input Current
See Table
Output Voltage Logic High(VOH)
2.4V min./TTL Load
90% of VDD min./HCMOS
Output Voltage Logic Low(VOL)
0.4V max./TTL Load
10% of VDD max./HCMOS
Rise / Fall Time
See Table
Symmetry(@50% TTL/1.4VDC TTL)
50¡¾10%(STD) / 55¡¾5%(Tight Symmetry)
Load Drive Capability
10TTL / 15pF HCMOS
Pin #1 Tristate Input Voltage
NC
Enable Output
VIH:¡Ã0.7VDD
Disable Output
VIL:¡Â0.3VDD
Disable Output : High Impedance
Start-up Time
10 ms max.
Period Jitter
pk-pk
100ps max.
1 sigma
25ps max.
¡á

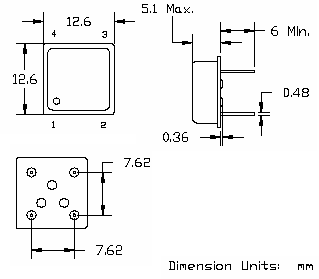

Dimensions


¡á
 Pin Connection

PAD No.
Connection
# 1
Stand-by(Tristate) or NC
# 2
GND
# 3
Output
# 4
VDD
Table (Unit mA for Input Current and ns for Rise/Fall time)
Frequency
Input Current
Rise/Fall
(ms) max
5V
3.3V
2.5V
1.8V
1.000 to 34.999MHz
25
16
10
8
10
35.000 to 60.000MHz
50
25
20
15
8
60.001 to 99.999MHz
60
40
30
25
5
100.000 to 106.250MHz
80
50
40
35
5
106.250 to 200.000MHz
50
40
35
2.5
