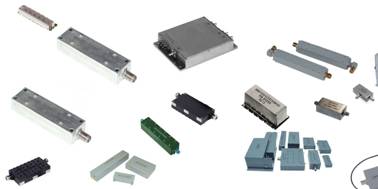

SHiNWOO Electronics provides a variety
of LC Bandpass filters convering frequency range of 0.3MHz~18GHz.
Narrow band as well as wide band filters are available with
typical insertion loss of 3dB and rejection>40dB typ.
The design varies from 2~13 sections depending on
the specification. These are available as PCB mount, surface
mount, through hole or connectorized modules. Custom designs
can be obtained depending on the customer specification.
SHiNWOO also offers SMT lumped element band pass
filters covering a frequency range of 10~200MHz with bandwidths
of 5% and 10%. The design of these filters varies from 3~5 sections.
Making them extremely small size. High performance in a smaller
package makes them extremely useful in integrated assemblies
Please contact us for optimizing into your
design |
กแ |

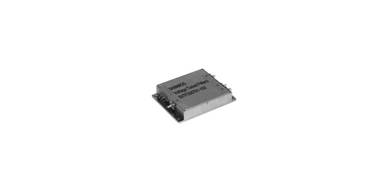

Surface mount PC series Filters |
|
SHiNWOO Elctronics Surface
mount PC series are miniature low cost lumped elements filters.
The surface mount PC
Filters are ideal where board
real estate is critical, they are reproducible, and can be easily
geared to high production.
The filters are manufacturer
with high Q stable components, exhibiting low temperature coefficient
characteristics.
The standard designs are 0.05dB
Chebyshev response. Other response type such as Butterworth,
and Elliptic, are also available. These filters are generally
2 to 7 sections. Our surface mount PC filters size ranges from
0.5" to 1.75" in length, 0.3" to 0.5" in
width and 0.3" to 0.5" height with a large variety
of enclosures available. Some of our enclosures Are small enough
to be taped and reeled.
Please contact us for optimizing into your design. |
กแ |
Interdigital Cavity Filters |
|
| SHiNWOO Electronics Interdigital
cavity filters are available with 4 to 13 resonators, with bandwidth
ranging from 10% to 100%. The resonator and the cavity are silver
pated for lower insertion loss and better selectivity. The interdigital
cavity filters size will depend greately on the power handling,
the required insertion loss, as well as the number of sections.
The standard designs are 0.05dB Chebyshev response. Other response
type such as Butterworth, and Elliptic, are also available.
Our Interdigital cavity filters range in size from
1.5 to more than 10" in length. The width and height
will vary depending on the insertion loss, power handling,
and center frequency, and the length will depend on the number
of sections. Power ' filters are also available with power
handling capability as high as 500W. All filters can be manufacturerd
in different package styles, such as SMT, connectorized, PC
mount, Drop-in, or any other
configuration suitable for the frequency range of the filter.
Please contact us for optimizing into your design. |
กแ |
Moderate band Cavity Filters |
|
SHiNWOO Electronics moderate
band cavity filters are Combline type filters available with
2 to 8 resonators, with bandwidth ranging from 3% to 30%. The
resonator and the cavity are silver plated for lower insertion
loss and better
selectivity. The Moderate band cavity filters size will depend
greately on the power handling and the required insertioin loss.
The standard designs are 0.05dB Chebyshev response.
Other response type such as Butterworth, and Elliptic, are also
available
Our Combline filters range in size from 1 to more than 10"
in length. The width and height will vary depending on
the number of sections, the required insertion loss, power handling,
and center frequency. Power filters are also available with
power handling capability as high as 500W. All filters can be
manufactured in different styles packages, such as SMT, Connectorized,
PC mount, Drop-in, or any other confuguration suitable for the
frequency range of the Filter.
Please contact
us for optimizing into your design. |
กแ |
Narrow Band Cavity Filters |
|
SHiNWOO Electronics moderate
band cavity filters are Combline type filters available with
2 to 8 resonators, with
bandwidth ranging from 0.3% to 4%. The resonator and the cavity
are silver plated for lower insertion loss and better
selectivity. The Narrow Band cavity filters size will depend
greately on the power handling and the required insertioin loss.
The standard designs are 0.05dB Chebyshev response.
Other response type such as Butterworth, and Elliptic, are
also available
Our Narrow band cavity filters range in size from 1 to more
than 10" in length. The width and height will vary depending
on the number of sections, the required insertion loss, power
handling, and center frequency. Power filters are also available
with power handling capability as high as 500W. All filters
can be manufactured in different styles packages, such as
SMT, Connectorized, PC mount, Drop-in, or any other confuguration
suitable for the frequency range of the Filter.
Please contact us for optimizing into your design.
|
กแ |
LC Lowpass Filters custom |
|
SHiNWOO Electronics Lowpass
filters covers the frequency ranges from 300KHz to 15GHz. These
Lowpass filters are available with 2 to 15 sections, with power
handling as high as 2Kwatts. Most common response types are
Butterworth, Chebyshev, and Elliptic.
Our standard lowpass filters characteristics, depends on the
complexity, and the desigh approach.Parameters such as insertion
loss and power handling capacity, can be enhanced by using special
design techniques.
The lowpass filters pacakges styles vary depending on the design
requirements. Package styles available are
connectorized, surface mount, and drop-in. The lowpass filters
come in a variety of connectors, such as SMD, N type, 7/16,
TNC, BNC, C,SMX, and many others.
SHiNWOO Electronics, will manufacture custom lowpass filters,
and special packaging, in order to meet our customer requirement.
|
กแ |
LC Highpass Filters custom |
|
SHiNWOO Electronics Highpass
filters covers the frequency ranges from 500KHz to 15GHz. These
highpass filters are available with 2 to 15 sections, with power
handling as high as 500 watts. Most common response types are
Butterworth, Chebyshev, and Elliptic.
Our standard
lowpass filters characteristics, depends on the complexity,
and the desigh approach.Parameters such as insertion loss and
power handling capacity, can be enhanced by using special design
techniques.
The highpass filters range in size
from 1" to more than 15" in length. The width and
height will vary depending on the pacakges styles vary depending
on the design requirements. Package styles available are specific
application. The highpass filters pacakges styles vary depending
on the design requirements. Package styles available are connectorized,
surface mount, and drop-in. The highpass filters come in a variety
of connectors, such as SMA, N type, 7/16, TNC, BNC,C,SMZ, and
many others.
SHiNWOO Electronics, will manufacture
custom highpass filters, and special packaging, in order to
meet our customer requirement.
Please contact
us for optimizing into your design. |
|
| SHiNWOO Electronics
Bandstop filters covers the frequency ranges from 500KHz to
5GHz. These Stopband filters are available with 2 to 15 sections,
with notch bandwith ranging from 1% to 20%, and passband to
notch ratio from 2:1.
The LC bandstop filters range in size from 1"
to more than 10" in length. The width and height will
vary depending on the specific application. Power filters
are also available with power handling capability as high
as 500W. All packages can be manufacturered in different styles,
such as SMT, Connectorized, PC mount, Drop-in, or any other
configuration suitable for the frequency range of filter.
Our standard Bandstop filters characteristics, depends
on the complexity, and the desigh approach.Parameters such
as insertion loss and power handling capacity, can be enhanced
by using special design techniques.
SHiNWOO Electronics, will manufacture custom Bandstop
filters, and special packaging, in order to meet our customer
requirement.
Please contact us for optimizing into your design.
|
กแ |
Cavity Duplexers/Diplexers |
|
| SHiNWOO Electronics
Diplexers cavity Filters are available 2 to 28 resonators,
with bandwidth ranging from 3% to 100%.
The resonator and the cavity are silver plated for lower insertion
loss and better selectivity. The Diplexers size will depend
greately on the power handling, the required insertion loss,
and the number of sections.
The standard designs are 0.05dB Chebyshev response.
Other response type such as Butterworth, and Elliptic, are
also available.
Our Diplexers range in size from 1.5" to more
than 10" in length. The width and height will vaey depending
on the insertion loss, power handling, and center frequency.
Power filters are also available with power handling capabilitgy
as high as 500W. The mechanical drawings on can be manufacturerd
in different styles, such as SMT, Conectorized, PC mount,
Drop-in, or any other configuration suitable for the frequency
range of the filter.
Please contact us for optimizing into your design.
|
|
| SHiNWOO Electronics
Crystal Filters covers the frequency ranges from 5MHz to 1
GHz. Bandwidth range from 0.5% to Diplexers cavity Filters
are available 2 to 28 resonators, with bandwidth ranging from
3% to 10 1%.
Our standard products characteristics, depends on the
complexity, and the desigh approach. Parameters such as
insertion loss and power handling capacity, can be enhanced
by using special design techniques.
We are supplying custom filters, ans special pacakaging,
in order to meet our customer requirements.
Please contact us for optimizing into your design.
|
กแ |
Wireless Cavity Filters, Duplexers/Diplexers |
|
| SHiNWOO Electronics
Cavity Bandpass filters and Duplexers/Diplexers for wireless
communication are specially designed for base stations, repeaters,
and where higher performance higher power handling is required.
The wireless specially targets wireless bands, such as GSM,
GPS, W LAN, INMARSAT, DCS, UMTS, TCAS, DAB, AMPS, EGSM, CATV,
and other Wireless bands. Cavity Bandfilters are Duplexers/Diplexers
come in a wide variety of frfequencies and package styles.
All filters can be designed for outdoor applications. The
products mentioned are just representative of SHiNWOO capabilities.
The filters are rugges coaxial cavity filters designed to
withstand extreme temperature between -50 to +90 deg.C. In
addition to the standard line of diplexers and bandpass filters
SHiNWOO Electronics can provide and handle special requirements
with NO NRE charge. |
Model |
Application |
Frequency |
Insertion
Loss |
Rejection |
Pacakge |
SE900D712 |
GSM
Duplexer |
PB1 @925~960MHz |
3.9dB
Max. |
30dB
min. |
21.4x9x4mm |
PB2 @880~915MHz |
SBR2014A |
Cavity
Filter |
PB
1850~1865MHz |
0.75dB
max. |
>70dB |
4.125"x1.5"x1.1" |
(1930~1945MHz) |
SB4112 |
GSM
BP Filter |
902~928MH |
1.5dB
max. |
>45dB
typ |
TBD |
(850~894/936~950) |
SB40A |
PCS
Duplexer |
PB1 @1850~1865MHz |
1dB in PB |
70dB |
4.125"x2.0"x1.5" |
PB2 @1930~1945MHz |
|
กแ |
WIFI 2.4GHz and 5.8GHz Bandpass Filters and Duplexers |
|
| SHiNWOO Elctronics provides
Bandpass Filters and Duplexers/Diplexers in the WIFI 2.4GHz
Band and WIFI 5.8GHz
Band. These are cavity filters with either 4 sections or 8
sections. They are designed for loss loss and optimum size
and performance. The WIFI filters and Duplexers/Diplexers
cover various channels from 2412 - 2462MHz and 5735 - 5835MHz.
|
Model |
Application |
Frequency |
Insertion
Loss |
Rejection |
Pacakge |
WIFI CTFR |
Cavity Filter |
20MHz @3dB BW |
2dB max. |
45dB min. |
56x56x27.5mm |
2412,2422,2437,2450MHz |
WIFI
5735 |
Bandpass Filter |
20MHz @3dB BW |
1.75dB max. |
20dB min. |
88.9x88.9x38.1mm |
5735MHz |
@foกพ20MHz |
WIFI 5745 |
Bandpass Filter |
40MHz @3dB BW |
1.75dB max. |
20dB min. |
88.9x88.9x38.1mm |
5745MHz |
@foกพ20MHz |
WIFI 5815 |
Bandpass Filter |
20MHz @3dB BW |
1.75dB max. |
20dB min. |
88.9x88.9x38.1mm |
5815MHz |
@foกพ20MHz |
WIFI 5835 |
Bandpass Filter |
20MHz @3dB BW |
1.75dB max. |
20dB min. |
88.9x88.9x38.1mm |
5835MHz |
@foกพ20MHz |
SB5164-1/11 |
Cavity Duplexer |
PB1 @2401-2423 |
1.7dB max. |
75dB min. |
TBD |
PB2 @2451-2473 |
@foกพ20MHz |
|
Please contact us for optimizing into your design.
SHiNWOO Elctronics provides Bandpass Filters and
Duplexers/Diplexers for WiMAX applications. Different toplogies
like ceramic or cavity are used. They cover various channels
from 3425MHz - 3575MHz. Low insertion loss and high rejection
in a reasonable size are some of the features of the WiMAX
filters.
SM3425C549 is a ceramic filter @3425MHz with BW =
50MHz, Insertion Loss @ fo =2dB max and rejection = 25dB
min
@fo กพ 200MHz
SM3475C552 is a ceramic filter @3475MHz with BW =
50MHz, Insertion Loss @ fo =25dB max and rejection = 25dB
min
@fo กพ 200MHz
WiMAX 3475/3575-50DI is a cavity Duplexer/Diplexer
with Inseriion loss @ fo,1dB and an isolation >50dB.
Please contact us for optimizing into your design.
|
กแ |
WIFI 2.4GHz and 5.8GHz Bandpass Filters and Duplexers |
|
SHiNWOO Electronics provides a
varierty of Voltage tuned filters covering various frequency
ranges and bandwidths.
They are available as connectorized modules as well as surface
mount components. |
|
SMD 7050
