Features



1. Frequency :
2. Four pad mount package, optionable 2 pads
3. Available high stability and lower frequency from 7.000MHz
4. Lead Free. Can meet the requirements of re-flow profiling using lead free solder.
¡á

Specification
Item
Type : CX7050
Application
For compact desing required circuit
Frequency Range
7.000 ~ 125.000MHz
Operating Temperature Range
-10 ~ +60¡É
Overtone
Fund to 35MHz~50MHz/3'rd to 125MHz
Frequency Tolerance(@25¡É)
¡¾ 10 ~ 50 x 10 -6
Temperature Characteristics (refered to +25¡É)
¡¾ 10 ~ 50 x 10 -6
Equivalent Series resistance
See table
Load Capacitance
8pF~32pF/Series
Drive Level
10§Ð ~ 200§Ð
Operable Temperature Range
-40 ~ +85¡É
¡á

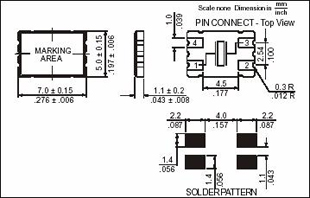

Dimensions

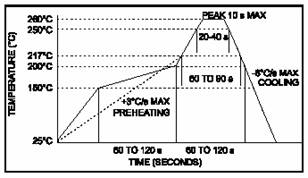

Reflow
¡Ø Table for ESR(§Ù)
Frequency
Equivalent Series Resistance
7.000~9.999
70 max
10.000~14.999
60 max
15.000~19.999
50 max
20.000~34.999
40 max
35.000~43.999
80 max
44.000~79.999
60 max

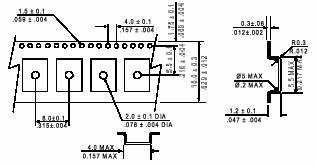

Carrier Tape
