Frequency Control Products
















For most Compact Size Crystals of Ultra Thin package
  CERAMIC SMD TYPE CRYSTAL UNITS/CX2520
This is ultra compact ceramic surface mount type crystal unit.
¡á

Features


  1. Compact size(2.5x2.0x0.5mm typ. 11mg height)
  2. Four pad mount package
  3. Need longer lead time for custom design frequency
  4. Lead Free. Can meet the requirements of re-flow profiling using lead free solder.
¡á

Specification
Item
Type : CX2520
Application
For compact desing required circuit
Frequency Range
16MHz,26MHz,40MHz available now/Others need longer lead time
Operating Temperature Range
-10 ~ +60¡É
Overtone
Fundamental
Frequency Tolerance(@25¡É)
¡¾ 10 ~ 50 x 10 -6
Temperature Characteristics (refered to +25¡É)
¡¾ 10 ~ 50 x 10 -6
Equivalent Series resistance
See table
Load Capacitance
8pF~32pF/Series
Drive Level
10§Ð ~ 200§Ð
Operable Temperature Range
-40 ~ +85¡É
¡á

Pin Connection
PAD No.
Connection
Note
# 1
Stand-by(Tristate) or NC
  • To produce various kinds wider frequency ranges, QPK is doing experiments with our best.
  • For new frequency, please let us start our experiment.
# 2
GND
# 3
Output
# 4
VDD
¡á

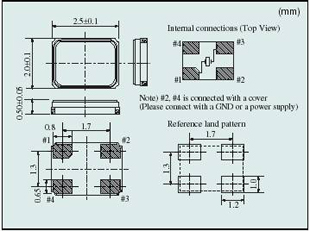

Dimensions

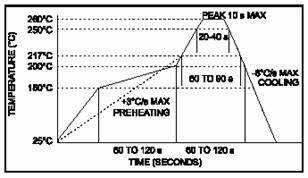

Reflow
¡Ø Table for ESR(§Ù)
Frequency
Equivalent Series Resistance
16MHz
80MHz
26MHz
70MHz
40MHz
60MHz

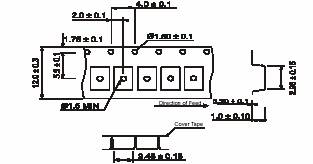

Carrier Tape
