High Performance Crystal Units HC-49/U DIP
  Metal Package A00 DIP & A0T
¡á

Features


  1. SC cut avilable for highst performace of ultra stable characteristics
  2. Optionable 3'r leads, Radial Taping, Insulation sleeves and tubes.
  3. Available special C0/C1 ratio design for VCXO circuit of SVR and LCD display
  4. Pb-Free and RoHS Compliance
¡á

Specification
Item
Type : A00 / A0T
    Application
For high performance required circuit
    Frequency Range
1.000 ~ 85.000MHz
    Operating Temperature Range
-10 ~ +60¡É
    Overtone
Fund to 30MHz~40MHz/3'rd to 85MHz
    Frequency Tolerance(@25¡É)
¡¾ 10 ~ 50 x 10 -6
    Temperature Characteristics (refered to +25¡É)
¡¾ 10 ~ 50 x 10 -6
    Equivalent Series resistance
See table
    Load Capacitance
8pF~32pF/Series
    Drive Level
10§Ð ~ 1000§Ð
    Operable Temperature Range
-40 ~ +85¡É
¡Ø ST cut
*Note
Frequency(MHz)
Oscillation
  • SC cut means stress compenated cut methods.
  •  Using OCXO and QCM solutions.
  • For special design requirement, please contact with QPK.
5.000MHz
Fund
10.000MHz
Overtone
16.384MHz
Overtone
¡á

Table of Equipvalent Series Resistance(ESR §Ù)
Frequency Range
ESR(§Ù)
OSC Mode
Package
1.000MHz
1000
Fundamental
A00
1.8432 ~ 1.999
600
Fundamental
A00
2.000 ~ 2.999
500
Fundamental
A00
3.000 ~ 3.499
150
Fundamental
A00
3.500 ~ 3.999
120
Fundamental
A00
4.000 ~ 4.999
100
Fundamental
A00
5.000 ~ 5.999
80
Fundamental
A00
6.000 ~ 6.999
60
Fundamental
A00
7.000 ~ 7.999
50
Fundamental
A00
8.000 ~ 9.999
40
Fundamental
A00
10.000 ~ 12.999
30
Fundamental
A00 / A0T
13.000 ~ 30.000
25
Fundamental
A00 / A0T
24.000 ~ 29.999
60
3'rd Overtone
A00 / A0T
30.000 ~ 85.000
40
3'rd Overtone
A00 / A0T
¡á

Dimensions

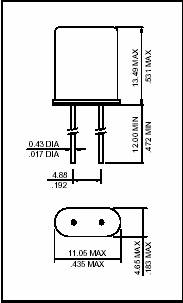

HC-49/U(A00)

HC-49/T(A0T) H - 11.3mm

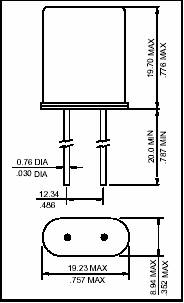

HC-51/U(A01)
