Frequency Control Products
















Low Profile Crystal unit - HC-49/S series
  Metal Package Low Profile Crystal Units  ATS DIP & ATS SLIM DIP
¡á

Features


  1. BT cut avilable for higher fundamental frequency as well as AT cut
  2. Optionable 3'r leads and Radial Taping for SMT
  3. Available special C0/C1 ratio design for VCXO circuit of SVR and LCD display
  4. Pb-Free and RoHS Compliance
¡á

Specification
Item
Type : AS-FR / ASS-FR
    Application
For slim design required circuit
    Frequency Range
3.500 ~ 85.000MHz
    Operating Temperature Range
-10 ~ +60¡É
    Overtone
Fund to 30MHz~40MHz/3'rd to 85MHz
    Frequency Tolerance(@25¡É)
¡¾ 10 ~ 50 x 10 -6
    Temperature Characteristics (refered to +25¡É)
¡¾ 10 ~ 50 x 10 -6
    Equivalent Series resistance
See table
    Load Capacitance
8pF~32pF/Series
    Drive Level
10§Ð ~ 1000§Ð
    Operable Temperature Range
-40 ~ +85¡É
¡á

Table of Equipvalent Series Resistance(ESR §Ù)
Frequency Range
ESR(§Ù)
OSC Mode
Package
3.500 ~ 3.999
150
Fundamental
AS
4.000 ~ 4.999
120
Fundamental
AS
5.000 ~ 5.999
100
Fundamental
AS / ASS
6.000 ~ 7.999
90
Fundamental
AS / ASS
8.000 ~ 9.999
70
Fundamental
AS / ASS
10.000 ~ 11.999
60
Fundamental
AS / ASS
12.000 ~ 14.999
50
Fundamental
AS / ASS
15.000 ~ 19.999
40
Fundamental
AS / ASS
20.000 ~ 26.999
30
Fundamental
AS / ASS
27.000 ~ 32.999
50
Fundamental
AS / ASS
33.000 ~ 40.000
40
Fundamental
AS / ASS
24.576 ~ 47.999
80
3'rd Overtone
AS / ASS
48.000 ~ 80.000
60
3'rd Overtone
AS / ASS
¡á

Dimensions

¡Ø BT cut (Fund Only)
Frequency(MHz)
ESR(§Ù)
27.000~32.999
50
33.000~44.000
40
* ASS 2.5mm height instead of 3.5mm
¡á

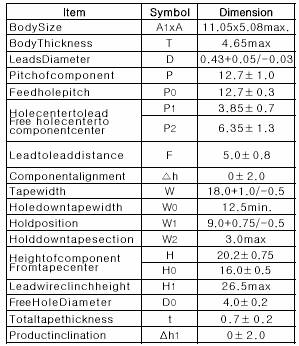

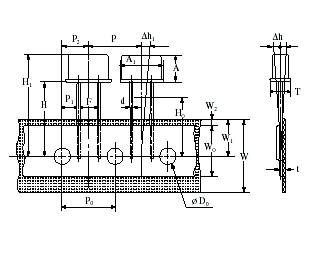

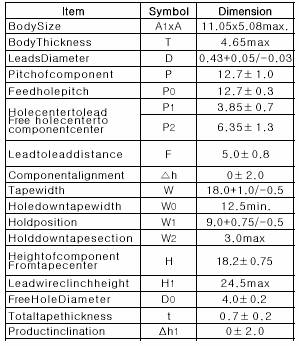

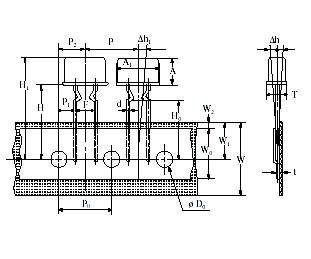

RADIAL TAPING (AS & ASS types available radial taping for surface mount)
