Bankd Crystal Filters SMD package |
| |
|
| Crystal Filter UM-family |
|
|
- UM-family Crystal Filters provide high performance
having sharp cutting edges.
- UM-Family provide thin thickness
- Optionable 2pole, 4 pole as well as 8 poles
- Other expansion specification, please contact us.
|
|
|
|
12.5KHz
CHANNEL SPACING |
TYPE |
FREQ. |
POLES |
PASS BAND |
STOP BAND |
RIPPLE |
LOSS |
Holder |
WIDTH |
WIDTH |
| กก |
กก |
กก |
dB |
KHz |
dB |
KHz |
dB |
dB |
|
10R08A |
10.7 MHz |
2 |
3 |
กพ3.75KHz |
20 |
กพ18 KHz |
2 |
1.5 |
UM-1 |
10R08A |
21.4 MHz |
2 |
3 |
กพ3.75KHz |
20 |
กพ18 KHz |
0.5 |
1.5 |
UM-1 |
21R08A |
21.4 MHz |
4 |
3 |
กพ3.75KHz |
40 |
กพ14 KHz |
1 |
1.5 |
UM-1*2 |
45R08A |
45.0 MHz |
2 |
3 |
กพ3.75KHz |
10 |
กพ12.5 KHz |
1 |
2.5 |
UM-1 |
45R08A |
45.0 MHz |
4 |
3 |
กพ3.75KHz |
30 |
กพ12.5 KHz |
1 |
2.5 |
UM-1*2 |
25.0KHz
CHANNEL SPACING |
| กก |
กก |
กก |
dB |
KHz |
dB |
KHz |
dB |
dB |
|
21R15A |
21.4 MHz |
2 |
3 |
กพ7.5KHz |
18 |
กพ25 KHz |
0.5 |
1.5 |
UM-1 |
21R15B |
21.4 MHz |
4 |
3 |
กพ7.5KHz |
40 |
กพ25 KHz |
1 |
2.5 |
UM-1*2 |
45R15A |
45.0 MHz |
2 |
3 |
กพ7.5KHz |
15 |
กพ25KHz |
1 |
2 |
UM-1 |
45R15B |
45.0 MHz |
4 |
3 |
กพ7.5KHz |
30 |
กพ25KHz |
1 |
3 |
UM-1*2 |
50.0KHz
CHANNEL SPACING |
| กก |
กก |
กก |
|
KHz |
dB |
KHz |
dB |
dB |
|
21R30A |
21.4 MHz |
2 |
3 |
กพ15KHz |
15 |
กพ45 KHz |
0.5 |
1.5 |
UM-1 |
21R30A |
21.4 MHz |
4 |
3 |
กพ15KHz |
40 |
กพ45 KHz |
1 |
2.5 |
UM-1*2 |
45R30A |
45.0 MHz |
2 |
3 |
กพ15KHz |
15 |
กพ50KHz |
1 |
2 |
UM-1 |
45R30A |
45.0 MHz |
4 |
3 |
กพ15KHz |
40 |
กพ50KHz |
1 |
3 |
UM-1*2 |
|
|
|

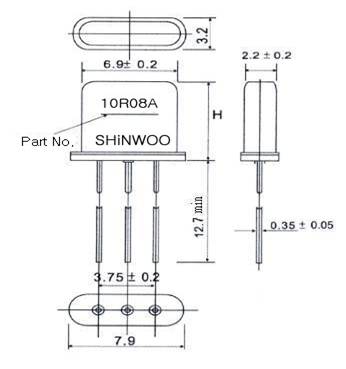

Pacakge
Height |
UM-1 |
8.0 |
UM-5 |
6.0 |
UM-4 |
4.7 |
|
|
SMD 7050
