14PIN
DIL OCXO |
| |
14PIN DIL Oven Controlled Crystal Oscillator for STRATUM
¥² |
| Small DIP OCXO optimized to use
GPS locking circuit |
|
|
- Small size OCXO.
- Low Power consumption design.
- AT and SC supported.
- Fast Delivery available
|
|
|
|
Item |
OX1400 |
Frequency
Range |
See
Table |
Operating
Temperature Range |
-20
~ +70¡É
Typical -40 ~ +85¡É max. |
Frequency
Tolerance(@25¡É) |
See
Table |
Temperature
Characteristics |
See
Table |
(refered
to +25¡É) |
Supply
Voltage(VDD) |
5.0VDC¡¾0.2V |
Voltage
Control Range(Vc) |
0.5V¡¾5VV |
Frequency
Stability(10 Year) |
¡¾4.6ppm
(All effects for 10 years) |
Current¡¡ |
Warm-up |
<
1.5 Watts (within ¡¾4.6ppm) |
| Steady State |
1.0W
from 0¡É 0.6W @+25¡É |
Pullability |
4
ppm MIN. |
Output |
HCMOS |
Frequency ¡¡¡¡¡¡¡¡¡¡ |
vs
Temperature |
¡¾250PPB
max.(150PPB Optional) |
| vs
Load |
¡¾10PPB |
| vs
Voltage |
¡¾100PPB |
| vs
Holdover |
¡¾370PPB |
| vs
Holdover Aging |
¡¾20PPB(24
hours) |
| vs
Long Term |
¡¾0.75PPM(1'st
year) |
Output
Load (HCMOS) |
15pF |
Phase
Noise¡¡ |
@
100§Ô |
-115dB/§Ô |
| @
10§Õ |
-140dB/§Ô |
Start-up
Time |
10ms
Max. |
|
¡á |

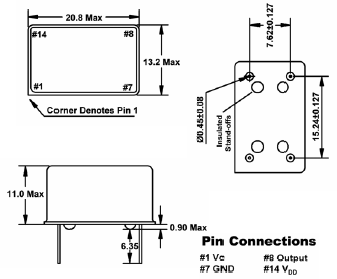

Dimensions (unit : mm) |
|
|
Table Developed Frequency (unit : MHz) |
2.430 |
2.500 |
2.560 |
3.088 |
3.250 |
3.750 |
4.000 |
4.096 |
4.860 |
5.000 |
5.120 |
5.500 |
6.176 |
6.500 |
7.500 |
8.000 |
8.192 |
9.720 |
10.000 |
10.240 |
11.000 |
12.352 |
13.000 |
15.000 |
16.000 |
16.384 |
19.440 |
20.000 |
20.480 |
22.000 |
24.704 |
26.000 |
30.000 |
32.000 |
32.768 |
38.880 |
40.000 |
40.960 |
44.000 |
|
|
Table Part Numbering System |
Stability |
Temperature
Depend |
| Part
No. |
Stability |
Part
No. |
Temp.Range |
OX-A |
¡¾300ppb |
(A,B,C,D,F)-1 |
0¡É
~ 70¡É |
OX-B |
¡¾250ppb |
(A,B,C,D,F)-2 |
-20¡É ~ 70¡É |
OX-C |
¡¾200ppb |
(A,B,C,D,F)-3 |
-40¡É ~ 85¡É |
OX-D |
¡¾150ppb |
How
to order using Part No. |
OX-F |
¡¾100ppb |
VC-Stability
option - Temperature Range |
|
|
Euro DIP PAD replace
