8PIN DIL OCXO
  8PIN DIP Oven Controlled Crystal Oscillator for STRATUM ¥²
Small DIP OCXO optimized to use GPS locking circuit
¡á

Features


  1. Small size OCXO.
  2. Low Power consumption design.
  3. AT and SC supported.
  4. Fast Delivery available
¡á

Specification
Item
OX0800
Frequency Range
See Table
Operating Temperature Range
-20 ~ +70¡É Typical -40 ~ +85¡É max.
Frequency Tolerance(@25¡É)
See Table
Temperature Characteristics
See Table
(refered to +25¡É)
Supply Voltage(VDD)
5.0VDC¡¾0.2V
Voltage Control Range(Vc)
0.5V¡¾5VV
Frequency Stability(10 Year)
¡¾4.6ppm (All effects for 10 years)
Current¡¡
 Warm-up
< 1.5 Watts (within ¡¾4.6ppm)
Steady State
1.0W from 0¡É 0.6W @+25¡É
Pullability
4 ppm MIN.
Output
HCMOS
Frequency ¡¡¡¡¡¡¡¡¡¡
 vs Temperature
¡¾250PPB max.(150PPB Optional)
vs Load
¡¾10PPB
vs Voltage
¡¾100PPB
vs Holdover
¡¾370PPB
vs Holdover Aging
¡¾20PPB(24 hours)
vs Long Term
¡¾0.75PPM(1'st year)
Output Load (HCMOS)
15pF
Phase Noise¡¡
 @ 100§Ô
-115dB/§Ô
@ 10§Õ
-140dB/§Ô
Start-up Time
10ms Max.
¡á

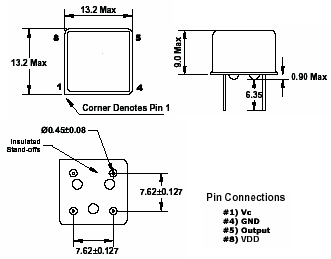

Dimensions (unit : mm)
Table  Developed Frequency (unit : MHz)
2.430
2.500
2.560
3.088
3.250
3.750
4.000
4.096
4.860
5.000
5.120
5.500
6.176
6.500
7.500
8.000
8.192
9.720
10.000
10.240
11.000
12.352
13.000
15.000
16.000
16.384
19.440
20.000
20.480
22.000
24.704
26.000
30.000
32.000
32.768
38.880
40.000
40.960
44.000
Table   Part Numbering System(unit : MHz)
2.430
2.500
2.560
3.088
3.250
3.750
4.000
4.096
4.860
5.000
5.120
5.500
6.176
6.500
7.500
8.000
8.192
9.720
10.000
10.240
11.000
12.352
13.000
15.000
16.000
16.384
19.440
20.000
20.480
22.000
24.704
26.000
30.000
32.000
32.768
38.880
40.000
40.960
44.000
¡á

Environment Characteristics
Description
Test Condition
High Temperature Storage
No Bias @ +105 ¡¾2¡É duration 96 ¡¾2 HRS
Low Temperature Storage
No Bias  @ -40 ¡¾2¡É duration 96 ¡¾2 HRS
High Temperature & High Humidity Storage
No Bias @ 90¡É and 90~95 RH duration 96 ¡¾2 HRS
Thermal Shock
No Bias @ -40¡É/30 min. ~ +85¡É/30 min.within 15 cycle
Vibration
Frequency : 20 ~ 2MHz
Acceleration : 5G max.
XYZ each direction x 30 min.
Drop
150cm, 120g Jig onto concrete
each 6 side and 1 corner, total 3 times
Solder Ability
See Below Profile
Solder Heat Resistance
See Below Profile
¡á

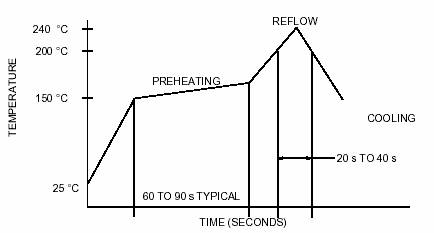

Reflow Soldering
