Frequency Control Products







Single Oven
Double Oven









Military Application OCXO
  Qualified for High Shock Resistance and vibration resistance
High Shock Resistance having Ultra Phased Noise Performance
¡á

Features


  1. Provides more than 8 hours Holdover
  2. Optionable almost kinds of expanded specification requirement
  3. High reliability OCXO for re-trace characteristics
  4. Optimized OCXO against Base Staition or Industrial Application
¡á

Specification
Item
OX2DMA
Frequency Range
10MHz/19.2MHz
Operating Temperature Range
-20 ~ +70¡É Typical -40 ~ +85¡É max.
Frequency Tolerance(@25¡É)
See Table
Temperature Characteristics (refered to +25¡É)
See Table
Supply Voltage(VDD)
15VDC¡¾0.2V/12VDC¡¾0.2V
Allan Deviation(Short term Stability)
5x10-12@1sec Typ
Voltage Control Range(Vc)
0.5V¡¾5VV
Frequency Stability(10 Year)
¡¾2.0ppm (All effects for 10 years)
Current¡¡
 Warm-up
¡Â 3.3 Watts (within ¡¾100ppb)
Steady State
1.3W from 0¡É 0.6W @+25¡É
Pullability
1 ppm MIN.(optionable)
Output
HCMOS/SINE
Frequency ¡¡¡¡¡¡¡¡¡¡
 vs Temperature
See Table
vs Load
¡¾3PPB Typ
vs Voltage
¡¾20PPB
vs Holdover
¡¾100PPB
vs Holdover Aging
¡¾20PPB(24 hours)
vs Long Term
¡¾100PPB(1'st year after 30 days operating)
Output Load (HCMOS)
15pF/0dBm to 9 dBm
Phase Noise¡¡
 @ 100§Ô
-140dB/§Ô
@ 10§Õ
-120dB/§Ô
@ 1K§Ô
-160dB/§Ô
@ 1K§Ô
-165dB/§Ô
Start-up Time
10ms Max.
Harmonic and Spurious
-30dBc/-80dBc
¡á

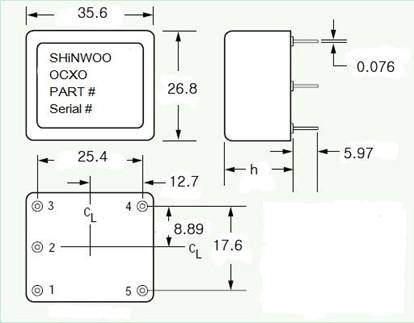

Dimensions (unit : mm)
Height Option
h
A
22.0
Table   Part Numbering System(unit : MHz)
Pin Configuration
#1
Vc, Control Voltage
#2
Vref. Reference Voltage
#3
Vcc. Supply Voltage
#4
Output
#5
Ground
¡á

Environment Characteristics
Description
Test Condition
High Temperature Storage
No Bias @ +105 ¡¾2¡É duration 96 ¡¾2 HRS
Low Temperature Storage
No Bias  @ -40 ¡¾2¡É duration 96 ¡¾2 HRS
High Temperature & High Humidity Storage
No Bias @ 90¡É and 90~95 RH duration 96 ¡¾2 HRS
Thermal Shock
No Bias @ -40¡É/30 min. ~ +85¡É/30 min.within 15 cycle
Vibration
Frequency : 20 ~ 2MHz
Acceleration : 5G max.
XYZ each direction x 30 min.
Drop
150cm, 120g Jig onto concrete
each 6 side and 1 corner, total 3 times
Solder Ability
See Below Profile
Solder Heat Resistance
See Below Profile
Table   Part Numbering System(unit : MHz)
Stability
Temperature Depend
Part No.
Stability
Part No.
Temp.Range
OX-A
¡¾20ppb
(A~C)-1
0¡É ~ 70¡É
OX-B
¡¾10ppb
(A~C)-2
-20¡É ~ 70¡É
OX-C
¡¾3ppb
(A~C)-3
-40¡É ~ 85¡É



          Copyright ¨Ï 2007 Shinwoo. All rights reserved.
