5032 package VCXO |
| |
5032 Ceramic Package Voltage Controlled Crystal Oscilaator |
| The most samll size VCXO supporting HCMOS
output |
|
|
1. Small size VCXO
2. 3.3V operating
3. Tape and Reel(2,000PCS. STD)
4. Lead Free. Can meet the requirements of re-flow
profiling using lead free solder. |
|
|
|
Item |
VC5032 |
Frequency
Range |
2.000
~ 54.000MHz |
Operating
Temperature Range |
-20
~ +70กษ
Typical -40 ~ +85กษ max. |
Overtone |
Fundamental |
Frequency
Tolerance(@25กษ) |
See
Table |
Temperature
Characteristics |
See
Table |
(refered
to +25กษ) |
Supply
Voltage(VDD) |
3.3VDCกพ5% |
Voltage
Control Range(Vc) |
1.65Vกพ1.65V(3.3VDC) |
Pulling
Ranges |
กพ100ppm |
Input
Current |
2.000~30MHz |
15mA max |
30.001~54MHz
|
25mA max
|
Linearity |
กพ20,กพ15,กพ10 |
Output
Voltage (VOH) |
90% of VDD min. |
Output
Voltage (VOL) |
10% of VDD max. |
Output
Load (HCMOX) |
15pF |
Jitter |
pk
- pk |
100ps
max. |
1
sigma |
25ps
max. |
Start-up
Time |
10ms
Max. |
|
กแ |

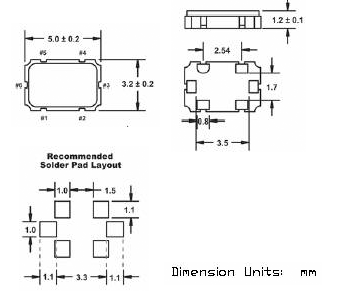

Dimensions (unit : mm) |
|
|
Pin
Connection |
PAD
No. |
Connection |
PAD
No. |
Connection |
#
1 |
VC |
#4 |
OutPut |
#
2 |
GND |
#5 |
Vcc |
#
3 |
NC |
#6 |
Enable/Disable |
|
Table Part Numbering System |
Stability |
Temperature
Depend |
| Part
No. |
Stability |
Part
No. |
Temp.Range |
VC-A |
กพ
100ppm |
(A,B,C,D,F)-1 |
0กษ
~ 70กษ |
VC-B |
กพ
50ppm |
(A,B,C,D,F)-2 |
-20กษ ~ 70กษ |
VC-C |
กพ
30ppm |
(A,B,C,D,F)-3 |
-40กษ ~ 85กษ |
VC-D |
กพ
25ppm |
How
to order using Part No. |
VC-F |
กพ
20ppm |
VC-Stability
option - Temperature Range |
|
|
|
กแ |
Environment Characteristics |
|
Description |
Test
Condition |
High
Temperature Storage |
No
Bias @ +105 กพ2กษ duration 96 กพ2 HRS |
Low Temperature Storage |
No Bias
@ -40 กพ2กษ
duration 96 กพ2 HRS |
High
Temperature & High Humidity Storage |
No
Bias @ 90กษ and 90~95 RH duration 96 กพ2 HRS |
Thermal
Shock |
No
Bias @ -40กษ/30 min. ~ +85กษ/30 min.within 15 cycle |
Vibration |
Frequency
: 20 ~ 2MHz |
Acceleration
: 5G max. |
XYZ
each direction x 30 min. |
Drop |
150cm,
120g Jig onto concrete |
each
6 side and 1 corner, total 3 times |

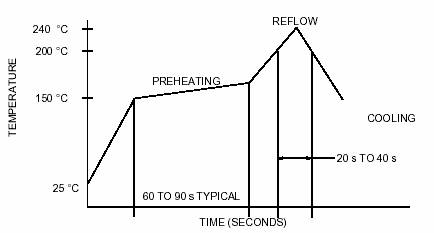

Solder
Ability |
See
Below Profile |
Solder
Heat Resistance |
See
Below Profile |
|
|
 |
| |
11.4x9.6 PCB SMD
