PCB
Based 11.4x9.6 VCXO with lowest phase noise |
| |
11.4x9.6 SMD Package Voltage Controlled Crystal Oscilaator |
| Adaptable requiring high frequency Voltage
Controlled Crystal Oscillator |
|
|
- Achieved most low phase noise characteristics.
- HCMOS/TTL output only
- Overtone mode VCXO available

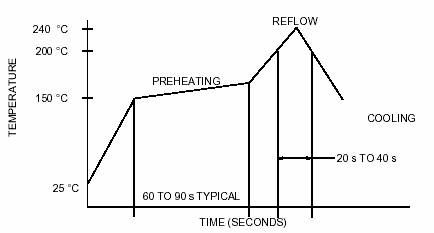

- Lead Free. Can meet the requirements of re-flow
profiling using lead free solder.
|
|
|
|
Item |
VC11B96 |
Frequency
Range |
1.000
~ 300.000MHz |
Operating
Temperature Range |
-20
~ +70¡É
Typical -40 ~ +85¡É max. |
Overtone |
Fund
to 70MHz/300MHz(Multi) |
Frequency
Tolerance(@25¡É) |
See
Table |
Temperature
Characteristics |
See
Table |
(refered
to +25¡É) |
Supply
Voltage(VDD) |
5.0VDC¡¾5%/3.3VDC¡¾5% |
Voltage
Control Range(Vc) |
+2.5V¡¾2V
or 2.5V(5VDC)/1.65V¡¾1.65V or 1.5(3.3VDC) |
Pulling
Ranges |
¡¾3ppm
¡¾10ppmMin |
Input
Current |
1.000~20MHz |
10mA
max(5VDC) |
20.001~40MHz
|
20mA
max(5VDC)/15mA max(3.3VDC)
|
40.001~70MHz |
30mA
max(5VDC)/25mA max(3.3VDC) |
70.001~300MHz |
50mA
max |
Linearity |
¡¾20,¡¾15,¡¾10 |
Output
Voltage (VOH) |
90% of VDD min. |
Output
Voltage (VOL) |
10% of VDD max. |
Jitter |
pk
- pk |
100ps
max. |
1
sigma |
25ps
max. |
Start-up
Time |
10ms
Max. |
|
¡á |
Dimensions (unit : mm) |
|
|
Pin
Connection |
PAD
No. |
Connection |
PAD
No. |
Connection |
#
1 |
E/D
or N/C |
#3 |
OutPut |
#
2 |
GND |
#4 |
Vcc |
|
Table Part Numbering System |
Stability |
Temperature
Depend |
| Part
No. |
Stability |
Part
No. |
Temp.Range |
VC-A |
¡¾
100ppm |
(A,B,C,D,F)-1 |
0¡É
~ 70¡É |
VC-B |
¡¾
50ppm |
(A,B,C,D,F)-2 |
-20¡É ~ 70¡É |
VC-C |
¡¾
30ppm |
(A,B,C,D,F)-3 |
-40¡É ~ 85¡É |
VC-D |
¡¾
25ppm |
Please
contact us
|
VC-F |
¡¾
20ppm |
|
|
11.4x9.6 PCB SMD
