VCTCXO |
| |
SMD Voltage Controlled & Temperature Compensated Crystal
Oscilaator |
| Available Self Fine Tunning after External
Locked signal source |
|
|
|
- Recommendable for outsource signal locking
- Wide Temperature range and high performance specification
- Base Station, Telecommunication Repeater and system
application
- Lead Free. Can meet the requirements of re-flow
profiling using lead free solder.
|
|
|
|
Item |
Type
: TV1196 |
Frequency
Range |
10.000
~ 14.000MHz |
Operating
Temperature Range |
-20
~ +70กษ
Typical -40 ~ +85กษ max. |
Overtone |
Fund
to 45MHz/3'rd to 140MHz |
Frequency
Tolerance(@25กษ) |
See Table |
Temperature
Characteristics |
See
Table |
(refered
to +25กษ) |
Supply
Voltage(VDD) |
5.0VDC/3.3VDC |
Input
Current |
10mA
(Load:10pF//10งฺ กพ10%
Each |
Frequency
Stability |
|
| กก
|
vs
Supply Voltage |
กพ
0.3ppm max. |
| กก
|
vs.
Load |
กพ
0.2ppm max. |
| กก
|
vs.
Agingกก |
กพ
1.0ppm max. |
Logic |
Clipped
Sine Wave |
Load
(Fan Out) |
10งฺ
// 10pF กพ
10% |
Output
Level |
0.8V
p-p Minimum |
Start-up
Time |
2
ms Typical at 90% Final Output Level |
|
|
 |
|

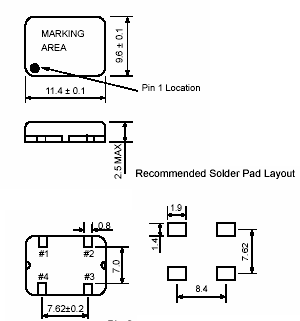

PAD
No. |
Connection |
#
1 |
NC |
#
2 |
GND |
#
3 |
Output |
#
4 |
VDD |
|
Table Part Numbering System |
Stability |
Temperature
Depend |
Part
No. |
Stability |
Part
No. |
Temp.Range |
TV-A |
กพ2.5ppm |
(A,B,C,D,F)-1 |
0กษ
~ 70กษ |
TV-B |
กพ2.0ppm |
(A,B,C,D,F)-2 |
-20กษ ~ 70กษ |
TV-C |
กพ1.5ppm |
(A,B,C,D,F)-3 |
-40กษ ~ 85กษ |
TV-D |
กพ1.0ppm |
How
to order using Part No. |
TV-F |
กพ0.5ppm |
TX-Stability
option - Temperature Range |
|
|
กแ |
Environment Characteristics |
|
Description |
Test
Condition |
High
Temperature Storage |
No
Bias @ +105 กพ2กษ duration 96 กพ2 HRS |
Low
Temperature Storage |
No
Bias @ -40
กพ2กษ
duration 96 กพ2 HRS |
High
Temperature & High Humidity Storage |
No
Bias @ 90กษ and 90~95 RH duration 96 กพ2 HRS |
Thermal
Shock |
No
Bias @ -40กษ/30 min. ~ +85กษ/30 min.within 15 cycle |
Vibration |
Frequency
: 20 ~ 2MHz |
Acceleration
: 5G max. |
XYZ
each direction x 30 min. |
Drop |
150cm,
120g Jig onto concrete |
each
6 side and 1 corner, total 3 times |
Solder
Ability |

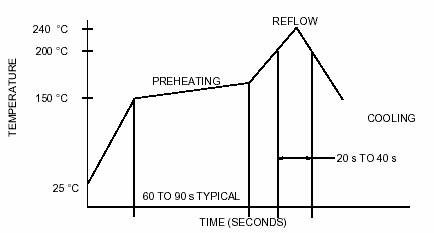

See
Below Profile |
Solder
Heat Resistance |
See
Below Profile |
|
|
 |
|
 |
|
|
|
| |
|
| |
|
| |
|
|
|
|
