Frequency Control Products
















Real Time Clock Crystals 32.768KHz
  SMD Package 3.2x1.5x0.75
The SMD package 32.768KHz provides low cost using auto mounting system
¡á

Features


  1. All Pb-Free RoHS compliant .
  2. Excellent Aging Characteristics.
  3. Available reflow procedures.
¡á

Specification
Item
Type : 4.1x1.5x0.75
Application
For low cost real time clock circuit
Frequency Range
32.768 KHz
Operating Temperature Range
-30 ~ +85¡É
Frequency Tolerance(@25¡É)
¡¾ 15 ~ 20 x 10 -6
Temperature Characteristics (refered to +25¡É)
-0.035x 10 -6 ~ +0.008 x 10 -6/¡É
Equivalent Series resistance
50 K ohms max.
Load Capacitance
12.5pF(Standard)
Drive Level
1.0§Ð max
Operable Temperature Range
-40 ~ +85¡É
¡á

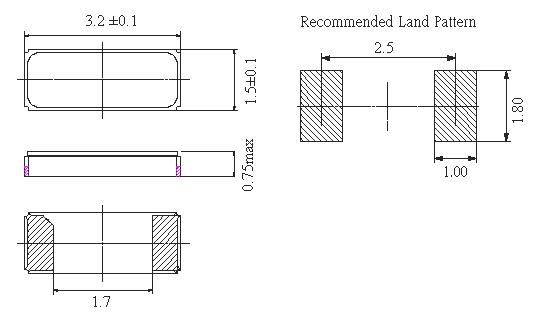

Drawings
