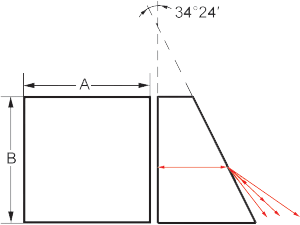

Brewster Prisms

  Because Brewster Prisms'angles are chosen, rays at minimum deviation both enter and exit the prism at the Brewster angle. In this case, surface reflection losses are negligible. They are often used inside the cavities of lasers operating on very low gain laser transitions, where even slight reflection losses may be intolerable. They are also used to select wavelength from a multi-wavelength laser.
  Specifications
Material
UV grade fused silica
Refractive Index
Nd=1.458 Nf-Nc=0.0068
Angular Dispersion
120
Wavelength Range
190-2500 nm
For low reflection
190-425 nm
Dimensions
0.5mm
Apex Angle
5 arc min
Surface Finish
Flatness
/10
Uncoated
